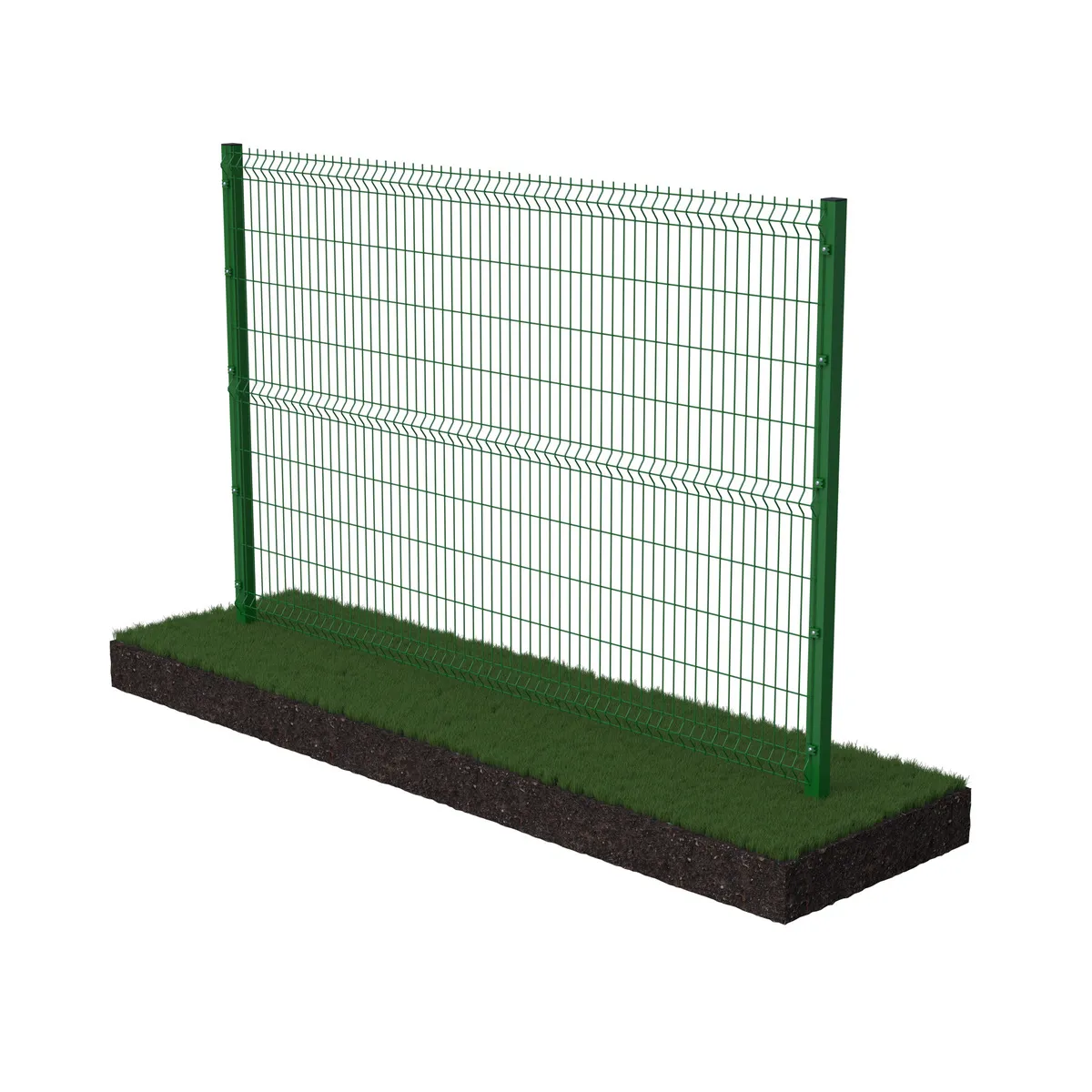

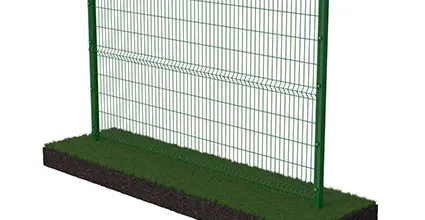

Welded Wire Mesh Fence 3D Panel

When it comes to securing public or private spaces, 3D Welded Mesh Panels offer a solution that blends both strength and aesthetic appeal. These rectangular mesh panels are a top choice worldwide for anyone looking for durable fencing that doesn’t compromise on visual appearance. They’re widely used in parks, industrial zones, residential areas, and more, offering a sleek and efficient way to ensure safety without creating a harsh, industrial look.




PDF DOWNLOAD
Details
Tags

Product Description

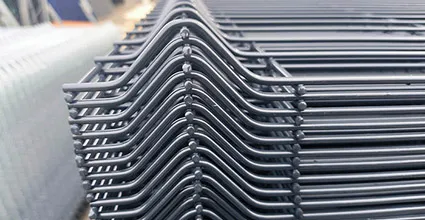

The primary reason for the popularity of 3D Welded Panels is their durability. Made from high-strength steel wires welded at every intersection, these panels form a solid, tamper-resistant structure that can stand the test of time. The key feature of 3D panels is their distinctive V-shaped bends, which provide additional rigidity. These bends make the panels much more resistant to impacts compared to traditional flat fencing solutions.



Parameter

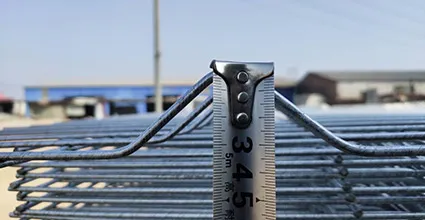

Wire Diameter

Mesh Opening

Height

Length

Surface Treatment

Colour

3mm-7mm
4mm,5mm
IS Most
Popular

50x100mm
50x150mm
50x200mm
60x100mm
60x20mm
75x150mm
75x200mm

1m
1.2m
1.5m
1.7m
1.8m
2m
2.5m

2m
2.5m

Electro/Hot Dipped Galvanized, Powder Sprayed, Coating, PVC/PE Dipped Coating

Green,
Blue,
White,
Etc

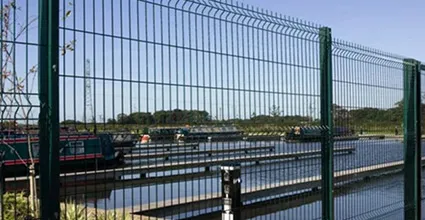

Application



  • 1

    Public Parks and Gardens

    These panels provide excellent security while maintaining an open feel, allowing for visibility without sacrificing protection.
  • 2

    Corporate Buildings

    Businesses often prefer 3D Welded Mesh Panels for securing their premises. The panels offer both a professional appearance and reliable perimeter security.
  • 3

    Industrial Facilities

    Factories, warehouses, and similar sites need fencing that can stand up to harsh conditions. The strength and durability of 3D Welded Mesh Panels make them ideal for these environments.
  • 4

    Residential Areas

    Whether it’s for a private home or a gated community, these panels offer an attractive and secure solution for protecting properties without giving a ‘closed-off’ feel.
  • 5

    Sports Fields and Complexes

    For stadiums and other sports facilities, these panels offer a durable yet visually appealing option for creating secure perimeters.



Features



1.Coating Options for Long-Term Durability

Durability is one of the most important factors when selecting fencing, especially for outdoor areas exposed to the elements. 3D Welded Mesh Panels are built to last, thanks to their protective coatings. The panels are first galvanized to resist rust and corrosion. Afterward, they can be coated with either polyester or thermoplastic for additional weatherproofing and visual appeal.

2.Security That’s Built to Last

One of the main reasons for choosing 3D Welded Mesh Panels is their ability to deliver outstanding security. The tightly spaced wires and reinforcing V-bends make these panels tough to climb, cut, or bend.

3.Easy Installation for Any Project

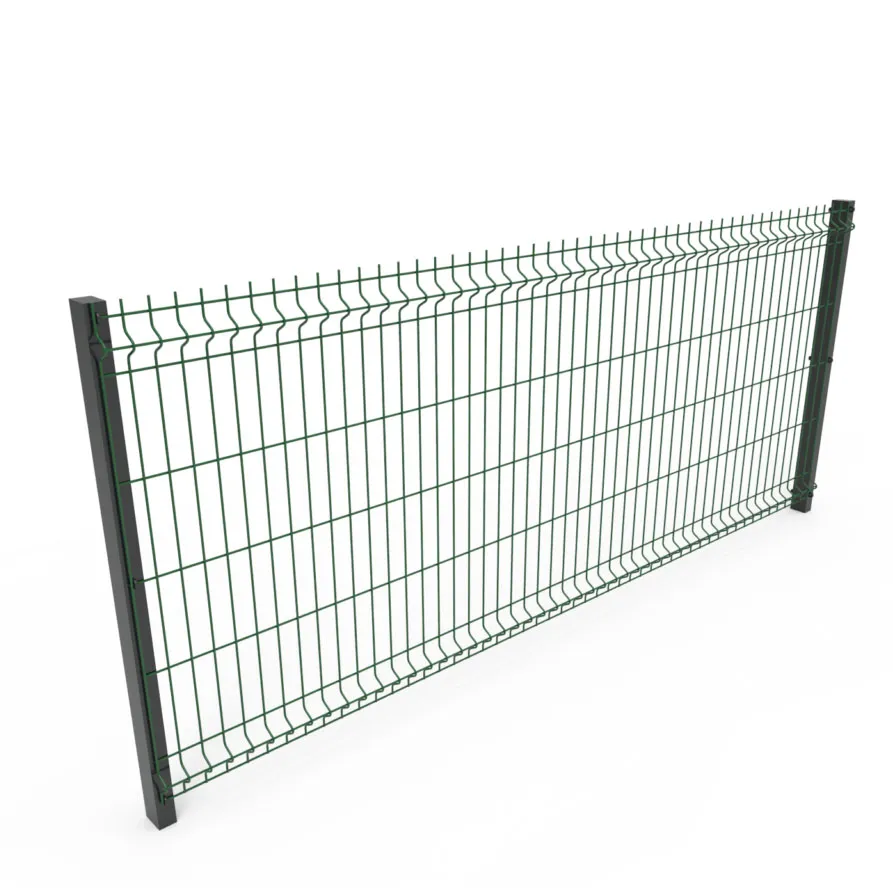

They can be mounted onto SHS (Square Hollow Section) or RHS (Rectangular Hollow Section) posts using a clip system, making the setup both quick and efficient. We also offer H-shaped posts for those who prefer a more streamlined, tool-free installation.
