Galvanized chain link fence mesh roll
Product Description
The chain link fence is made of high-quality low-carbon steel wire, and can be divided into two types: folded edge shrink handle and twist edge lock handle. Because the mesh used in the chain link fence has a wide width, thick wire diameter, bright colors, anti-aging, corrosion resistance, complete specifications, strong tension, and is not easily deformed by external force, it is very suitable for safety protection and isolation.
And it can be constructed and installed on the construction site. The biggest feature of the product is its flexibility, and the shape and size can be adjusted at any time according to the requirements of the site.
Parameter
|
Mesh Opening |
Wire Diameter |
Width |
|||
|
inch |
mm |
BWG |
mm |
inch |
mm |
|
3/4 |
20 X20 |
18 ; 16 ; 14 |
1.2- 2.1 |
50 - 500 |
10；15；20；25；30 |
|
1 |
25 X 25 |
18；16 ;14 |
1.2- 2.1 |
50 - 500 |
10；15；20；25；30 |
|
1-1/4 |
30 X 30 |
1 8 ; 16 ; 14 ;12 ; 10 |
1.2- 3.4 |
50 - 500 |
10；15；20；25；30 |
|
1-1/2 |
40X 40 |
18, 16 , 1 4 ;12 ; 10 |
1.2- 3.4 |
50 - 500 |
10；15；20；25；30 |
|
2 |
50 X 50 |
16 ; 14 ;12 ; 10 |
1.6- 3.4 |
50 - 500 |
10；15；20；25；30 |
|
2-3/8 |
60 X 60 |
16 ; 14 ;12 ; 10 |
1.6- 3.4 |
50 - 500 |
10；15；20；25；30 |
|
3 |
75X 75 |
14 ; 12 , 10 |
2.1- 3.4 |
50 - 500 |
10；15；20；25；30 |
|
4 |
100 X 100 |
1 4; 12 ;10; 8 |
2.1- 4.0 |
50 - 500 |
10；15；20；25；30 |
Application
Chain link fence is widely used in road, railway, expressway and other fence facilities. It is also used for interior decoration, raising chickens, ducks, geese, rabbits and zoo enclosures. Protective nets for mechanical equipment, conveyor nets for mechanical equipment.
Fences for sports venues and protective nets for road green belts. After the wire mesh is made into a box-shaped container, the cage is filled with rocks and the like to become a gabion mesh. Also used to protect and support seawalls, hillsides, bridges, reservoirs and other civil engineering works.
It is a good material for flood control and flood fighting. Can also be used for handicraft manufacturing. Warehouse, tool room refrigeration, protective reinforcement, marine fishing fence and construction site fence, river course, slope fixed soil (rock), residential safety protection, etc.
Features
Galvanized chain link fence mesh roll
The mesh of the chain link fence is uniform, the surface of the mesh is smooth, and the appearance is elegant;
Wide web width, thick wire diameter, not easy to corrode, long service life;
The weaving is simple, strong and durable;
The product is easy to transport and install;

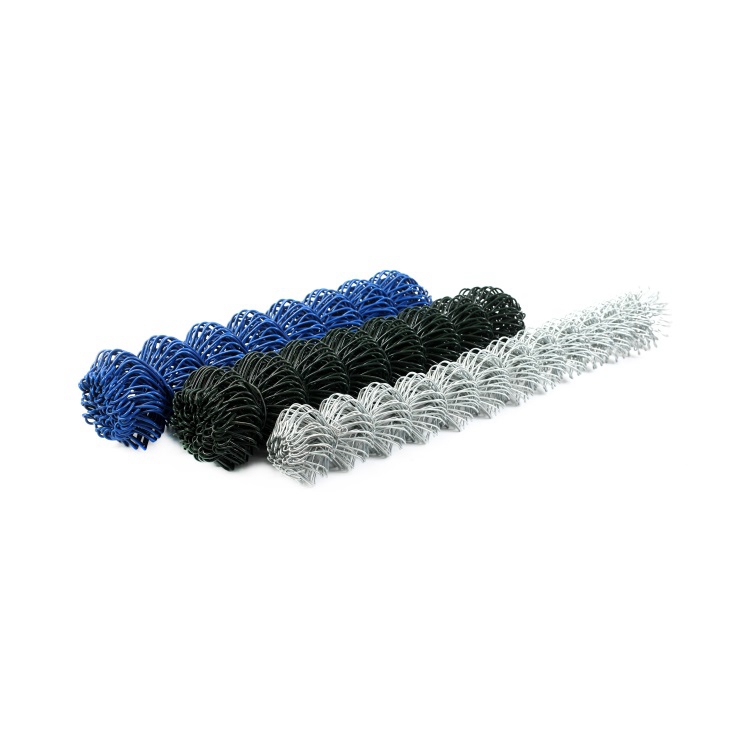

PVC coated chain link fence has different colors, has good decorative effect and anti-corrosion effect, and is harmonious and beautiful with the surrounding environment.
