Pvc galvanized iron welded wire mesh

Read More About discount double twist hexagonal mesh netting

Welded wire mesh is made of high-quality low-carbon steel wire row welding, and then cold-plated (electroplating), hot-dip, PVC coating and other surface passivation and plastic treatment. It achieves a smooth surface, uniform mesh, firm solder joints, good local machining performance, stability, good weather resistance, and good corrosion resistance.

CONTACT NOW PDF DOWNLOAD

Details

Product Description

The welded wire mesh is made of high-quality low-carbon steel wire, which is processed and formed by automatic, precise and accurate mechanical equipment spot welding. The surface treatment of the welded wire mesh is galvanized, and it is produced in conventional British standards.

It will not loosen even if it is cut or under pressure. It has the strongest anti-corrosion performance in the whole iron screen, and it is also one of the most widely used iron screens.

Parameter

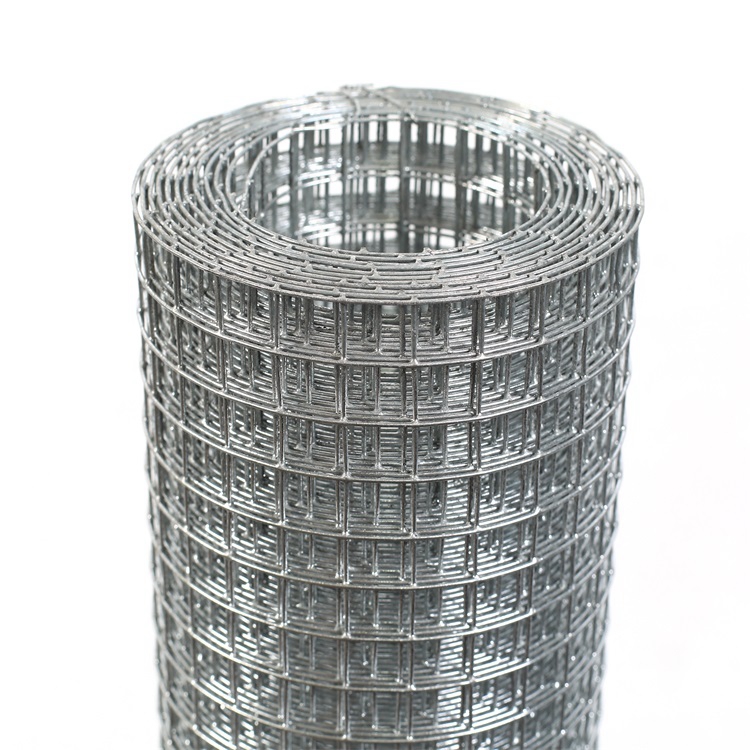

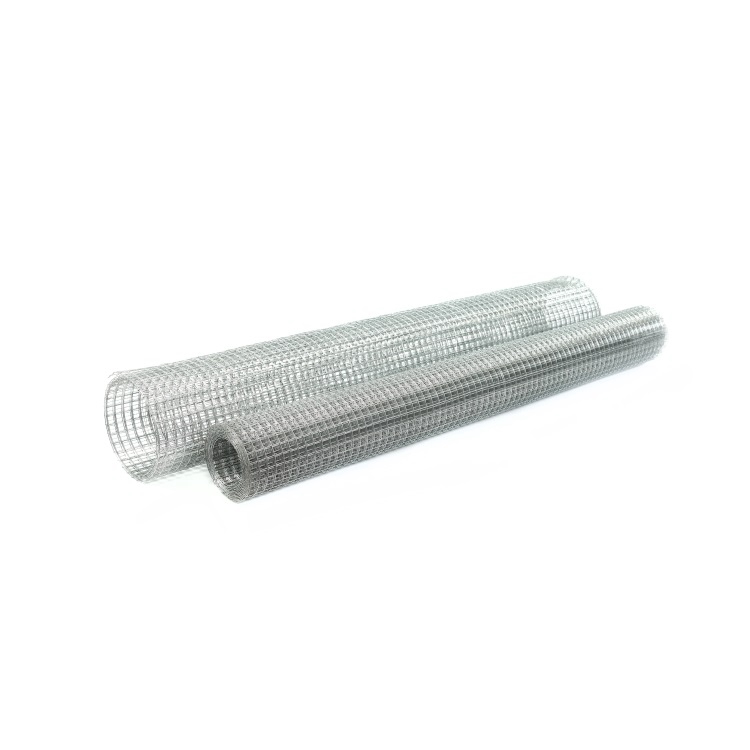

Galvanized

Mesh Opening		Wire Diameter		Width
inch	mm	BWG	mm	inch	m
1/4 X 1/4	6X6	26; 24; 23 ; 22; 21	0.45 - 0.81	12- 48	0 3-1.2
3/8 X 3/8	10X10	26 , 24; 23 , 22 , 21 , 20 , 19	0 45-1.07	12-48	0.3-1.2
1/2 X1/2	13 X 13	25; 24; 23; 22; 21; 20 ; 19 ; 18 ; 17 ; 16	0.51- 1.65	12-80	0.3- 2.0
5/8X 5/8	16X16	25; 24; 23; 22; 21,20, 19;18, 17, 16	0.51-1.65	12- 48	0.3- 1.2
3/4 X 3/4	19X19	25; 24; 23; 22; 21; 20 ; 19 ; 18 ; 17 ; 16	0.51- 1.65	12-80	0.3- 2.0
1/2 X 1	13 X25	22 ; 21; 20 , 19 ; 18 ; 1716; 15 , 14	0.71-2.11	12 - 80	0.3- 2.0
1 X1	25X25	22 ; 21; 20 : 19; 18 : 1716 ; 15 : 14	0.71 - 2.11	12 - 80	0.3- 2.0
1- 1/4 X 1- 1/4	30X30	20 , 19 , 18 , 1716 , 15; 14; 13, 12	0.89- 2.77	12- 80	0.3- 2.0
1- 1/2 X 1 - 1/2	40X40	20;19; 18;1716; 15; 14; 13;12	0.89- 2.77	12- 80	0.3- 2.0
1X2	25X50	19; 18, 1716; 15; 14; 13, 12	1.07- 277	12- 80	0.3-2.0
2X2	50X 50	18; 1716; 15; 14; 13; 12	1.25-2.77	12- 80	0.3- 2.0
2X3	50X 75	16 ; 15 ; 14; 13 ; 12	1.65- 2.77	12- 80	0.3- 2.0
2X4	50X 100	16 ; 15; 14 ; 13 ; 1 2	1.65- 2.77	12- 80	0.3- 2.0
3X3	75X75	16 , 15 ; 14 ; 13 , 1 2	1.65- 2.77	12 - 80	0.3- 2.0
3X4	75 X 100	16 ; 15 ; 14 ; 13; 1 2	1.65- 2.77	12- 80	0.3- 2.0
4X4	100X 100	16;15; 14; 13; 12	1.65- 2.77	12- 80	0.3- 2.0
6X6	150 X 150	16 ; 15 ; 14 ; 13 ; 1 2	1.65- 2.77	12 - 80	0.3 - 2.0

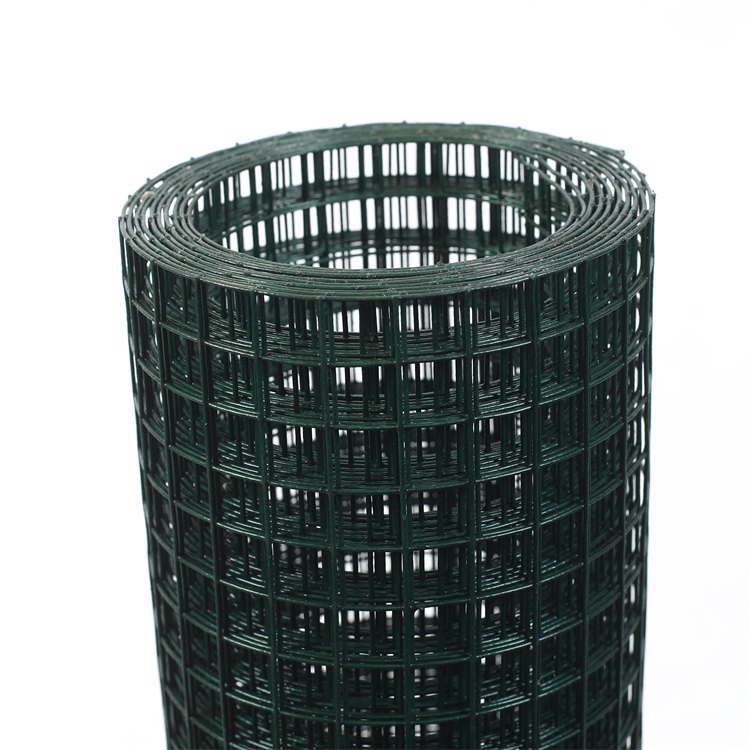

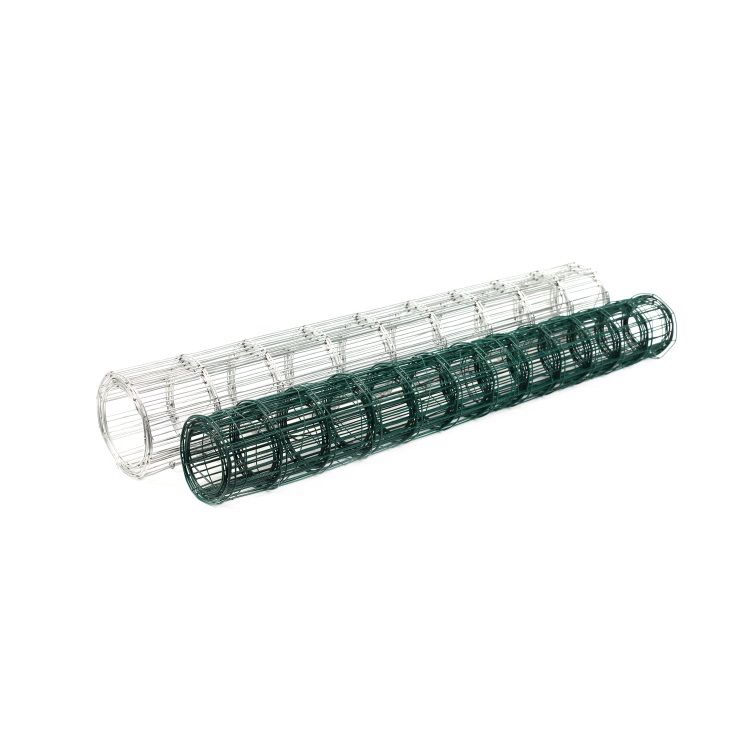

PVC Coated

Mesh Opening		Wire Diameter	Width
inch	mm	mm	inch	m
1/4 X1/4	6X6	0.35/0.7-0.5/0.9	12-48	0.3- 1.2
3/8X3/8	10X10	0.35/0.7-0.8/1.2	12-48	0.3-1.2
1/2x1/2	13x13	0.4/0.8-1.2/1.6	12-80	0.3-2.0
1/2X1/2	13X13	0.4/0.8-1.2/1.6	12-80	0.3-20
5/8X5/8	16X16	0.4/0.8-1.2/1.6	12-48	0.3-1.2
3/4X3/4	19X19	0.4/0.8-1.2/1.6	12-80	0.3-2.0
1/2X1	13X25	0.4/0.8-12/1.6	12-80	0.3-2.0
1X1	25X25	0.5/0.9-1.6/2.0	12-80	0.3-2.0
1- 1/4X1-1/4	30X30	0.5/0.9-1.6/2.0	12-80	0.3-2.0
1-1/2X1-1/2	40X40	0.5/0.9-1.6/2.0	12-80	0.3-2.0
1X2	25X50	0.6/1.0-2.2/2.6	12-80	0.3-2.0
2X2	50X50	0.6/1.0-2.2/2.6	12-80	0.3-2.0
2X3	50X75	1.6/2.0-2.2/2.6	12-80	0.3-2.0
2X4	50X100	1.6/2.0-2.2/2.6	12-80	0.3-2.0
3X3	75X75	1.6 /2.0-2.2/2.6	12-80	0.3-2.0
3X4	75X100	1.6/2.0-2.2/2.6	12-80	0.3-2.0
4X4	100X100	1.6/2.0-2.2/2.6	12-80	0.3-2.0

Application

Welded wire mesh is widely used in industry, agriculture, construction, transportation, mining and other industries. Such as machine guards, livestock fences, garden fences, window guards, passage fences, poultry cages, egg baskets and home office food baskets, waste baskets and decoration. It is mainly used for general building exterior walls, concrete pouring, high-rise residential buildings, etc.

It plays an important structural role in the thermal insulation system. During construction, the hot-dip galvanized electric-welded grid polystyrene board is placed inside the outer mold of the outer wall to be poured. , the outer insulation board and the wall survive at one time, and the insulation board and the wall are integrated into one after the formwork is removed.
