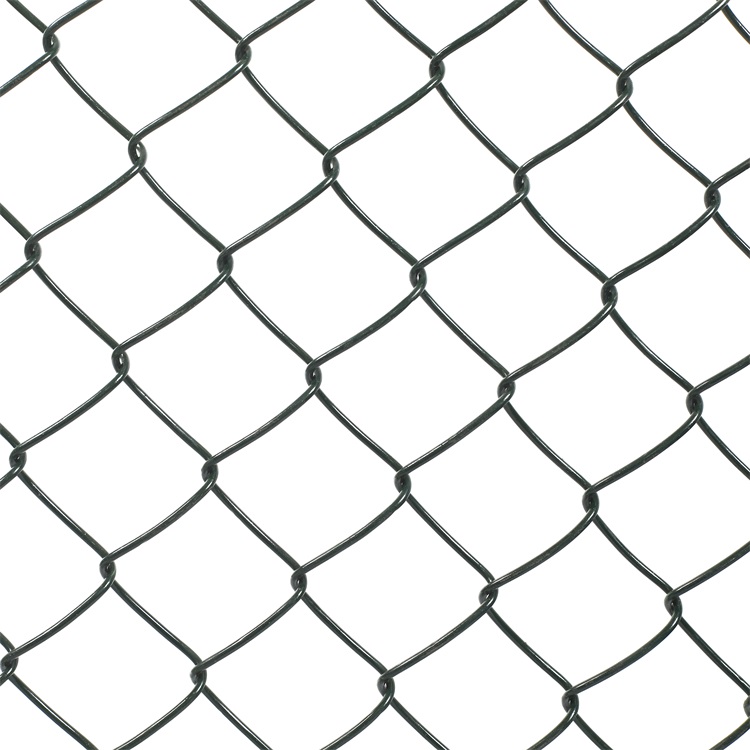

Chain link fence

The chain link fence is made by crocheting, and its manufacturing process is relatively simple. Moreover, the rhombus mesh is a kind of mesh with relatively uniform meshes and a fairly flat mesh surface, and the first impression of the rhombus mesh is beautiful and generous.

Availability:

Quantity:


Inquire Add to Basket

Uniform mesh, smooth mesh, simple weaving, crocheted, beautiful and generous

Chain link fence

Mesh Opening		Wire Diameter		Length
inch	mm	BWG	mm	inch	m
3/4	20 X20	18 ; 16 ; 14	1.2- 2.1	50 - 500	10；15；20；25；30
1	25 X 25	18；16 ;14	1.2- 2.1	50 - 500	10；15；20；25；30
1-1/4	30 X 30	1 8 ; 16 ; 14 ;12 ; 10	1.2- 3.4	50 - 500	10；15；20；25；30
1-1/2	40X 40	18, 16 , 1 4 ;12 ; 10	1.2- 3.4	50 - 500	10；15；20；25；30
2	50 X 50	16 ; 14 ;12 ; 10	1.6- 3.4	50 - 500	10；15；20；25；30
2-3/8	60 X 60	16 ; 14 ;12 ; 10	1.6- 3.4	50 - 500	10；15；20；25；30
3	75X 75	14 ; 12 , 10	2.1- 3.4	50 - 500	10；15；20；25；30
4	100 X 100	1 4; 12 ;10; 8	2.1- 4.0	50 - 500	10；15；20；25；30

Mesh Opening		Wire Diameter		Length
inch	mm	BWG	mm	inch	m
3/4	20 X20	18 ; 16 ; 14	1.2- 2.1	50 - 500	10；15；20；25；30
1	25 X 25	18；16 ;14	1.2- 2.1	50 - 500	10；15；20；25；30
1-1/4	30 X 30	1 8 ; 16 ; 14 ;12 ; 10	1.2- 3.4	50 - 500	10；15；20；25；30
1-1/2	40X 40	18, 16 , 1 4 ;12 ; 10	1.2- 3.4	50 - 500	10；15；20；25；30
2	50 X 50	16 ; 14 ;12 ; 10	1.6- 3.4	50 - 500	10；15；20；25；30
2-3/8	60 X 60	16 ; 14 ;12 ; 10	1.6- 3.4	50 - 500	10；15；20；25；30
3	75X 75	14 ; 12 , 10	2.1- 3.4	50 - 500	10；15；20；25；30
4	100 X 100	1 4; 12 ;10; 8	2.1- 4.0	50 - 500	10；15；20；25；30
